LG-Aria Telephones

Please Note: The model number of your LG-Aria telephone can usually be found on a label stuck on the bottom of the phone.

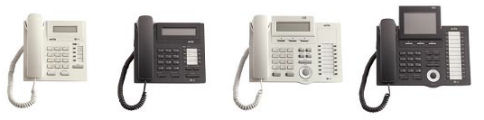

LDP 7000 Series Digital Handsets (i.e. 7004, 7008, 7016, 7024)

All these telephones have a dedicated headset jack.

1. To program headset jack mode (also known as E-mic) on these LG Aria phones (i.e use the "Speaker" button to answer and release calls):

   • Press the "Menu" button,
   • Select "Advanced Program",
   • Press "OK",
   • Select "5 EAR MIC PROGRAM",
   • Press "OK",
   • If ON is not displayed on the second line press "Next",
   • Press "OK").
   • A quicker way to do this is to press the following keys in order: Menu, 2, 5, ON, OK. An alternative is to press TRANS/PGM, 17, 1, Save/OK.

     Note: This overrides the Speaker functionality (ie you cannot use the Speaker while in headset mode).

2. You can also use a headset in the handset jack (underneath the phone). To program this means of using a headset on your telephone(i.e use the "Speaker" button to answer and release calls):

   • Press the "Menu" button,
   • Select "Advanced Program",
   • Press "OK",
   • Select "4 SPK/HEADSET PROGRAM",
   • Press "OK",
   • If HEADSET MODE is not displayed on the first line press "Next" to toggle to HEADSET MODE,
   • Press "OK", otherwise simply press "OK" to exit the menu).
   • A quicker way to do this is to press the following keys in order: Menu, 2, 4, ON, OK. An alternative is to press TRANS/PGM, 75, 0, Save/OK.

     Note: This overrides the Speaker functionality (ie you cannot use the Speaker while in headset mode.

Plantronics:
Any H or HW series headset top and a Quick Disconnect to 2.5mm bottom cable (if using headset jack) or any H or HW series headset and an A10 cable (if using handset jack).

Jabra:
Any headset top and a standard cable with a 2.5mm plug (if using headset jack) or any headset top and a Direct Connect cable (if using handset jack).

ADD-COM:
Any headset top and a Quick Disconnect to 2.5mm bottom cable (if using headset jack) or any headset and a BLUE cable (if using handset jack).

Sennheiser:
Any headset top with a 2.5mm bottom cable (eg CCEL 190-2), if using headset jack, or any headset and a CSTD01 cable, if using handset jack.

Note: The 7024 & 7024LD can be fitted with an optional Bluetooth module. In this case any Bluetooth headset can pair with it.

LKD Select Telephones (i.e 2N/S, 8D/S, 30D & 30LD)

To fit a headset to these phones, unplug the handset and replace it with the appropriate amplifier/switch. The handset cord then plugs into the amplifier/switch.

To program the headset mode on these LG Aria phones (i.e use the MON button to answer and release calls) press TRAN/PRG then 7 followed by 5 then 1 for speaker mode or 0 for headset mode. Press the HOLD/SAVE button to save your setting.

Plantronics:
Any H or HW series headset and an A10 cable OR any H or HW series headset and an M22 amplifier.

Jabra:
Any headset and a GN 8000 amplifier or GN 8210 digital amplifier. OR any Direct Connect headset with a standard cord (part no: 8800-01-01).

ADD-COM:
Any headset and a Multi Purpose Switch (MPS)OR any headset and a BLUE cable.

Sennheiser:
Any headset top with a CHS 01 cable.
